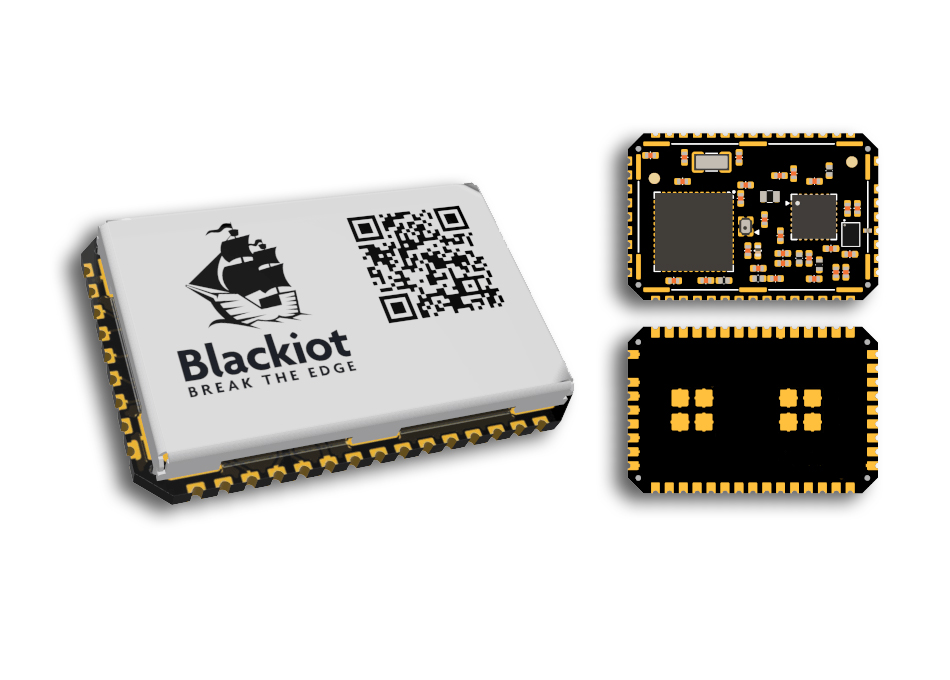

BlackMoon – Sub-GHz Transmission SOM

BlackMoon – Sub-GHz Transmission SOM

€30.00

FEATURES

The BlackMoon SOM provides an ideal solution for low power sensors with WAN communication.

Hardware Features

MCU Core:

  • ARM® Cortex®-M0+ at 32 MHz
  • 128 kBytes Flash with ECC
  • 20 kBytes RAM
  • 6 kBytes of data EEPROM with ECC
  • -40 to 85°C operating temp. (125 °C available)
  • Voltage range 1.8 V to 3.6 V
  • Low power modes down to 0.29 μA
  • Run at 93 μA / MHz
  • 12 bit ADC up to 1.14 MSPS

RF Transceiver:

  • Frequency Bands:
    • 413-479 MHz
    • 826-958 MHz
  • Modulation schemes:
    • 2(G)FSK, 4(G)FSK
    • OOK, ASK
  • Air data rate from 0.1 to 500 kbps
  • Ultra Low Power consumption:
    • 7 mA RX
    • 10 mA TX @ +10 dBm
  • Receiver sensitivity: down to -130 dBm
  • RF output power up to +16 dBm
  • More than 145 dB RF link budget

Module:

  • Size 22.86 x 15.24 mm
  • Castellated contacts
  • 47 pin + 8 ground pads
COD: AGV0451 Categoria:

Descrizione

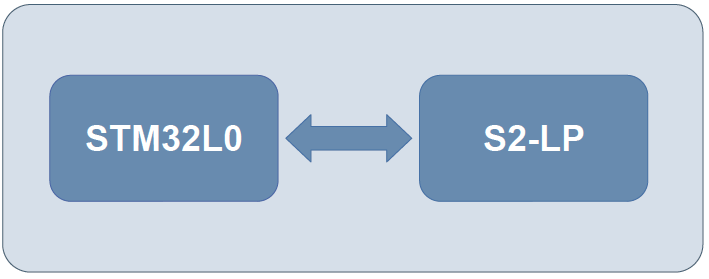

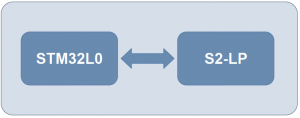

The BlackMoon Ultra Low Power transmission module consists of STM32L0 microcontroller unit with S2-LP high performance ultra-low power RF transceiver, intended for RF wireless applications in the sub-1 GHz band. The module can be custom programmed with

STM32Cube tools form STMicroelectronics enabling fast application development. Ideal solution for SIGFOX™ or 6loWPAN / IEEE 802.15.4g low power wide area networks.

Target Applications:

  • 24/7 always-on sensor processing at ultralow power consumption.
  • LPWAN data transmission over SIGFOX™ and Monarch networks or 6loWPAN / IEEE 802.15.4g networks
  • Battery powered devices
  • Smart metering, Industrial monitoring and control, Home energy management systems, Smart parking, Wireless alarm systems, Asset tracking devices
