AGEDUINO

The Arduino project is part of the Internet of Things (IoT).

It is a microcontroller board based on the Arduino project and designed to communicate with the Internet / intranet via WiFi.

This board is the basis, the “heart” of the projects developed by IoT AGEvoluzione.

Why AGEduino?

The project AGEduino is derived from Arduino project and can use the libraries and the Arduino IDE since the processor used is natively supported in the Arduino project.

It differs in some key features:

  • Dimension reduced: the dimensions of approximately 52 × 27 mm allow easy insertion even in small objects. The size reduction is achieved without sacrificing expandability: all I/O are returned to the processor by connectors with 2.54mm pitch.
  • Ability to increase: the processor utilization to 16 MHz ATMEL ATmega1284P keeps small but at the same time to quadruple the available memory resources than Arduino UNO, with its 128KB Flash, 16KB of RAM and 4K EEPROM.
    Arduino will be tight? Recompile your application for AGEduino!
  • Two UART lines (serial TTL): AGEduino was born to communicate!

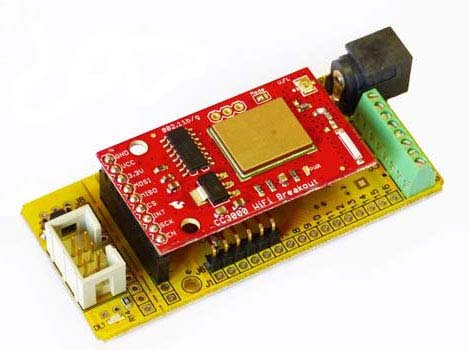

  • WiFi Interface: Arduino has a connector that allows the use of the WiFi controller CC3000 from Texas Instruments. Thanks to libraries dedicated communication management WiFi is easy and reliable.
  • Switching power: thanks to power switching Arduino is ideal for projects that make energy saving their goal, and allows you to create battery-powered devices that optimize the duration. AGEduino can be powered with direct current from 5V up to 30V. Furthermore the power is configurable to 3.3V, 4V and 5V to adapt to the needs of the user.
  • LED Drivers: Four PWM outputs can be controlled drivers strips of LED lights mounted on the back of the board. Create your lighting project without adding external components.
  • Made in Italy: Italian quality for a product that is not just for prototyping, but it aspires to enter the world of embedded industry.
  • Support: AGEvoluzione supports Arduino through the experience of industry experts. Develop over AGEduino, and you are sure to make your product.

This set of features is not present in any project based on Arduino and therefore justifies the creation of this new project. AGEvoluzione is also willing to cooperate in translating design firmware and / or hardware-based custom AGEduino.

View the manual on Issuu

Download the manual in pdf
